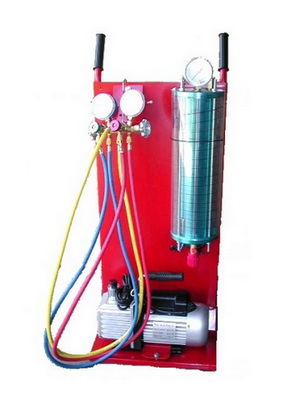

Charging Cylinder Station

Item Name Charging cylinder Station Spec. Charging cylinder Manifold Gauge Set Vacuum Pump Cart

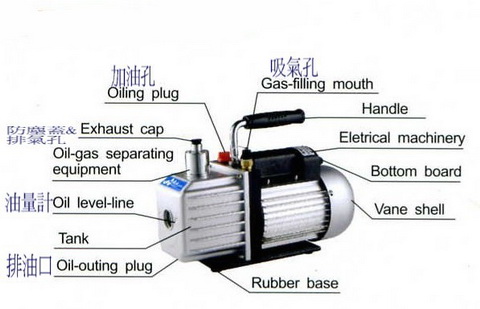

Vacuum Pump

Item No. VP-135 VP-150 Item Name 135 Vacuum Pump 150 Vacuum Pump Spec. Voltage : 110v/60Hz Free Air Displacement : 3.6CFM Ultimate Vacuum : 5pa (75microns) Motor : 180w Oil Capacity : 250cc Dimension : 285x121.5x230 NW : 7.5kg Voltage : 110v/60Hz Free Air Displacement : 5CFM Ultimate Vacuum : 5pa (75microns) Motor : 1/2HP Oil Capacity : 300cc Dimension : 335x134x255 NW : 12kg

Charging cylinder

Item No. CG31-S CG31-H Description w/o Heater with Heater Spec. R12,R134,R22 Capacity : 3200g(7lb) Pressure Gauge : 17.5bar/250psi Safe Valve : 170psi R12,R134,R22 Capacity : 3200g(7lb) Pressure Gauge : 17.5bar/250psi Safe Valve : 170psi Heater : 50W PCKAGE : 21X21X68 cm   N.W4.5 G.W5.5Kg / CARTON   1.1CBFT

Item No. CG2K-134 CG2K-447 CG2K-242 Item Name 2K Charging cylinder 2K Charging cylinder 2K Charging cylinder Spec. R134 Pressure gauge : -30mmHG ~24bar/350psi (50grams/Bar   4oz/psi) Relief valve setting :17.5/250psi Capacity : 2000g(5lb) Dimension : Φ140 x 520mm R134,R404,R407 Pressure gauge : -30mmHG ~24bar/350psi (50grams/Bar   4oz/psi) Relief valve setting :17.5/250psi Capacity : 2000g(5lb) Dimension : Φ140 x 520mm R12,R134,R22 Pressure gauge : -30mmHG ~24bar/350psi (50grams/Bar   4oz/psi) Relief valve setting :17.5/250psi Capacity : 2000g(5lb) Dimension : Φ140 x 520mm PACKAGE : 21X21X55 cm   N.W3.5 G.W4.3Kg / CARTON   0.9CBFT

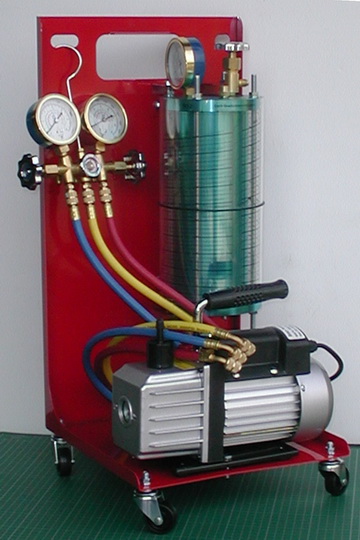

CCS2K

@2.1 CBFT /ctn   NW16 GW17kg
