N2 Regulator / Relief Valve

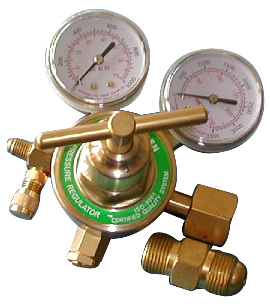

NR600 N₂ Regulator

Relief : 600 psi
Regulator : 0-600 psi
Target Gauge : Ø53 1000psi/70bar
Source Gauge : Ø53 3500psi/250bar
Package : 10pcs/ctn NW10Kg GW12Kg 1.5CBFT

NR350 N₂ Regulator

Relief : 350 psi
Regulator : 0-320 psi
Target Gauge : Ø53 700psi/50bar
Source Gauge : Ø53 3500psi/250bar
Package : 10pcs/ctn NW10Kg GW12Kg 1.5CBFT

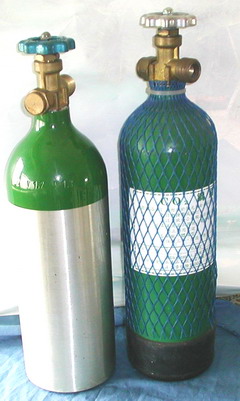

TP250 Seamless Steel Cylinder

T.P. : 250bar
W.P. : 150bar
Volume : 1.5L 90x350x2.8t
Empty Weight : 2.0Kg
Using for : N₂, CO₂, Compress Air
Packing : 9box/ctn NW20Kg GW23Kg 31x31x37cm 1.25CBFT

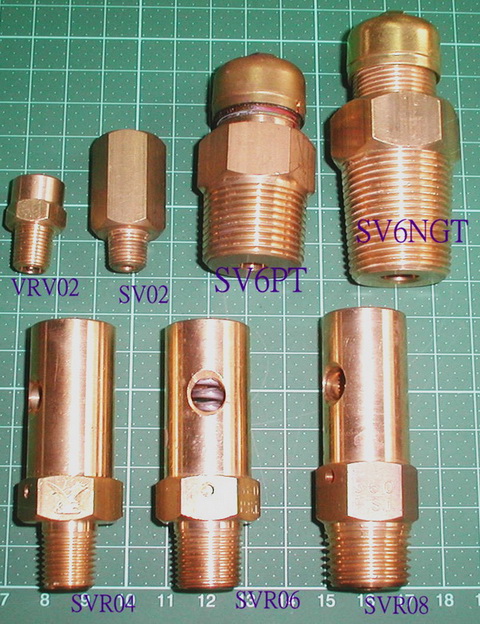

Relief Valve

Type	Spring Loaded Atmospheric Type Relief Valve (for Refrigerant Tank)
Item No.	VRV02	SV02	SV6PT	SV6NGT
Spec.	1/8 NPT	1/8 NPT	3/4 MPT	3/4 NGT
Usage
Pressure	Pressure setting : 200~400 PSI

Type	Spring Loaded Atmospheric Type Relief Valve (for Frozen System)
Item No.	SVR04	SVR06	SVR08
Spec.	1/4" MNPT	3/8" MPT	1/2" MPT
Pressure	Pressure setting : 350PSI (can be 200~400 PSI)
